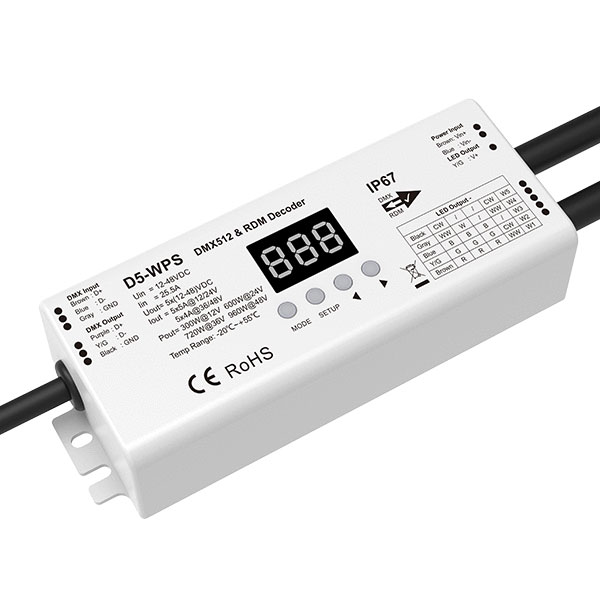

The DMX5-WPS 5 Channel RGB+CCT Constant Voltage Waterproof DMX512 & RDM Decoder is a professional LED decoder for projects that need DMX control over constant voltage LED strip. It is designed for RGB, RGBW, RGB+CCT and multi-channel dimming applications, with a rugged IP67 enclosure for outdoor and damp environments. This makes the D5-WPS suitable for architectural lighting, entertainment lighting, facade lighting, signage, landscape lighting, themed environments and other installations where a DMX512 master needs to control low voltage LED strip or linear lighting.

DMX5-WPS complies with the DMX512 standard protocol and supports RDM, allowing compatible systems to configure and manage the decoder more easily. It includes a digital numeric display and buttons for setting the DMX start address and operating parameters. Output mode is selectable for 1, 2, 3, 4 or 5 channel operation, so the same decoder can be used for single colour dimming, CCT, RGB, RGBW or RGB+CCT LED strip layouts. The decoder also includes stand-alone RGB, RGBW, RGB+CCT and 5-channel dimmer modes for operation without a DMX signal.

With 12-48V DC input, 5 x constant voltage PWM outputs, 5 x 5A output at 12/24V and up to 600W output at 24V, the D5-WPS is built for demanding LED strip installations. It offers selectable 8-bit or 16-bit grey level, selectable PWM frequency from 250Hz to 32000Hz, and linear or logarithmic dimming curves. Protection includes reverse polarity, over-heat, overload and short-circuit recovery. Use this product when you need a waterproof DMX512 RDM LED decoder for RGBW or RGB+CCT constant voltage strip, not an SPI pixel controller. Cutter Electronics links this product to matching RGB, RGBW, tunable white and multi-channel LED strip products to help build a complete DMX lighting system.

Features
Waterproof IP67 DMX512 decoder for outdoor and damp environments.
Complies with the DMX512 standard protocol and supports RDM.
Selectable 1, 2, 3, 4 or 5 channel output modes.
8-bit or 16-bit grey level selectable.
PWM frequency selectable from 250Hz to 32000Hz.
Stand-alone RGB, RGBW, RGB+CCT and 5-channel dimmer modes.
Over-heat, overload and short-circuit protection with automatic recovery.

Technical details
Input voltage: 12-48V DC
Input current: 25.5A max
Output voltage: 5 x 12-48V DC
Output current: 5 x 5A at 12/24V, 5 x 4A at 36/48V
Output power: 300W at 12V, 600W at 24V, 720W at 36V, 960W at 48V
Output type: Constant voltage
IP rating: IP67
Size: 200 x 93 x 45mm
Warranty: 5 years

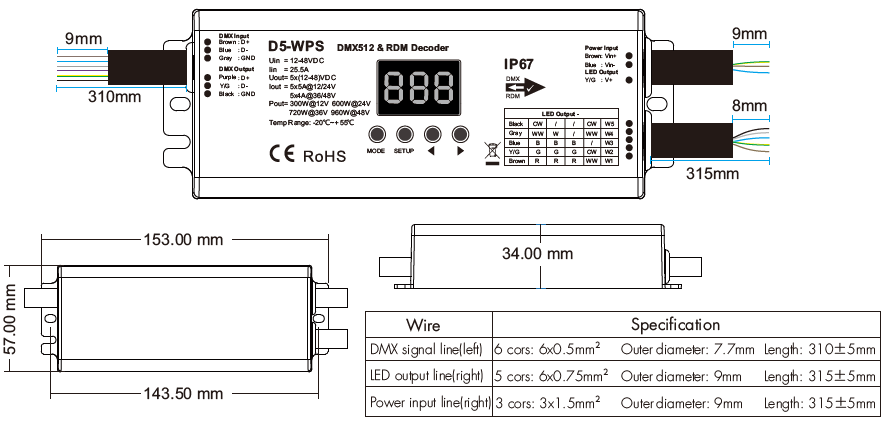

Mechanical Structures and Installations

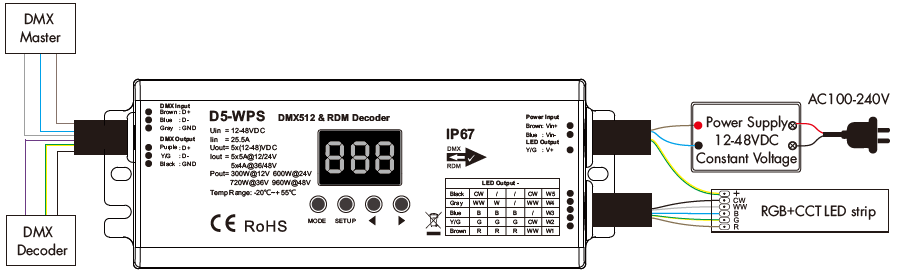

Wiring Diagram
