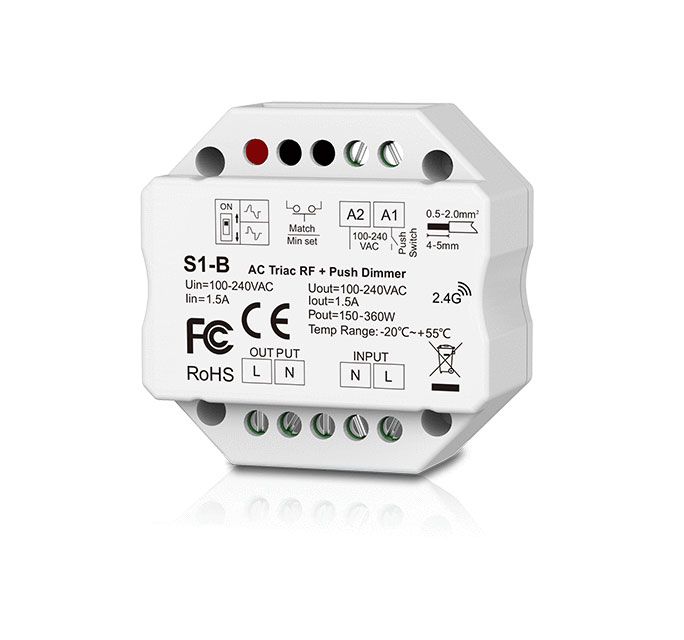

AC Triac RF + Push Dimmer S1-B
â—� RF + Push AC phase-cut dimmer, 1 channel output.
â—� To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
â—� 256 levels 0-100% dimming smoothly without any ash.
â—� Leading edge dimming or trailing edge dimming set by dip switch.
â—� Min brightness can be set by key.
â—� Light on/off fade time 3s selectable.
â—� Compatibility with RF 2.4G single zone or multiple zone dimming remote control.
â—� Connect with external push switch to achieve on/off and 0-100% dimming function.
â—� Easy to be placed in standard wall junction box behind a push switch.
â—� Over-heat / Over-load protection, recover automatically.
