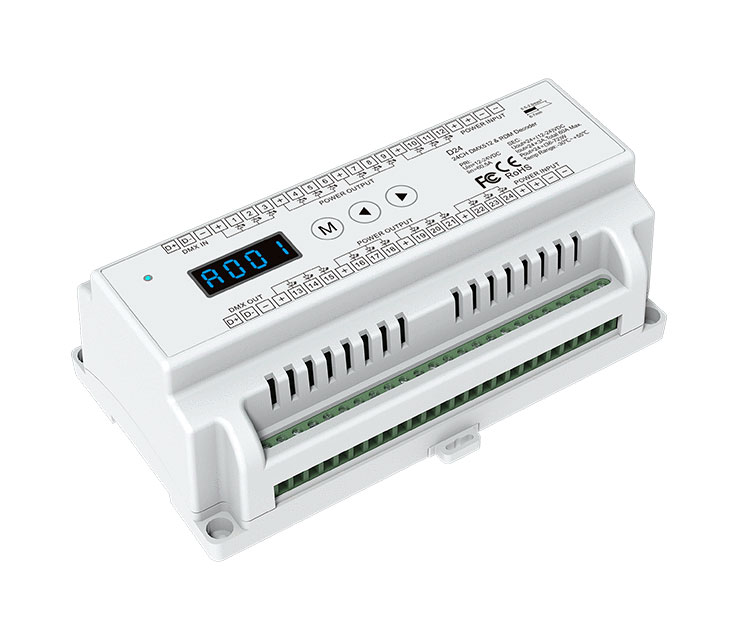

24 Channel Constant Voltage DMX512 & RDM Decoder - 12-24VDC
â—� Comply with the DMX512 standard protocols.
â—� Digital numeric display, set DMX decode start address by buttons.
â—� RDM function can realize intercommunication between DMX master and decoder. For example, DMX decoder address can be set by DMX master console.
â—�16bit (65536 levels) /8bit (256 levels) grey level selectable.
â—� PWM frequency 500/1000/2000/4000/8000/16000/32000Hz selectable.
â—� Logarithmic or linear dimming curve selectable.
â—� Stand-alone 24-channel RGB mode and 24-channel dimmer mode selectable, which be controlled by buttons with built-in programs, instead of DMX signal.
