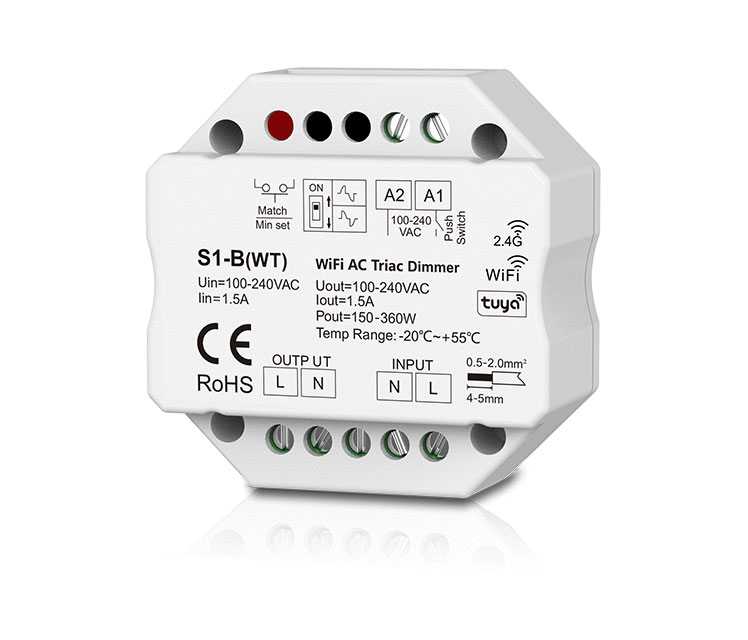

100-240V 1CH*1.5A WiFi-RF+Push AC Phase-cut Dimmer S1-B(WT)(Tuya App)
â—� WiFi + RF + Push AC phase-cut dimmer, 1 channel output.
â—� To dim and switch single color dimmable LED lamps, traditional incandescent and halogen lights.
â—� Tuya smart APP cloud control, support on/off, brightness adjust, delay turn on/off light, timer run, scene function.
â—� Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu voice assistant.
â—� 256 levels 0-100% dimming smoothly without any ash.

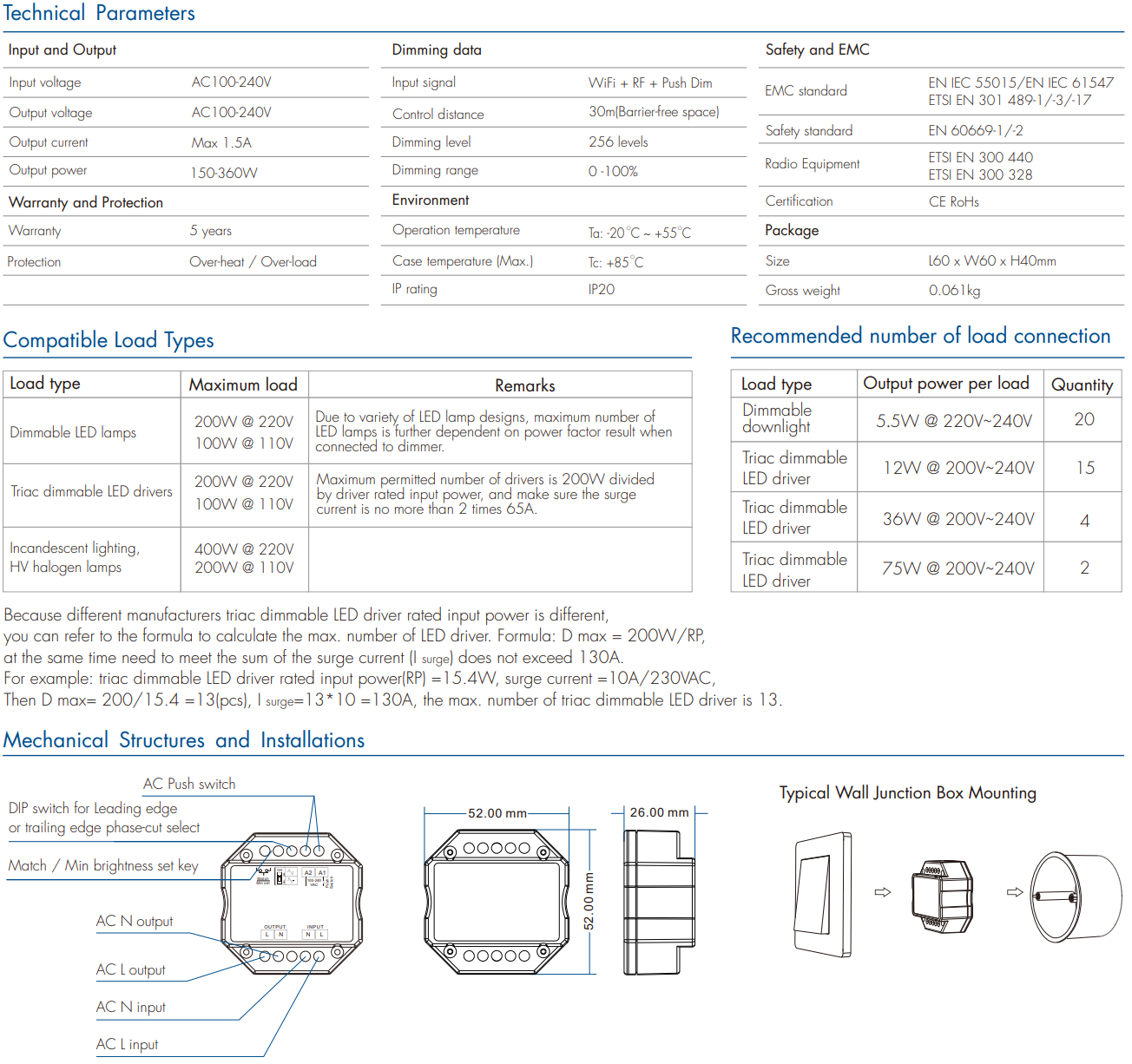

â—� Leading edge dimming or trailing edge dimming set by dip switch.
â—� Min brightness can be set by key.
â—� Light on/off fade time 3s selectable.
â—� Compatibility with RF 2.4G single zone or multiple zone dimming remote control.

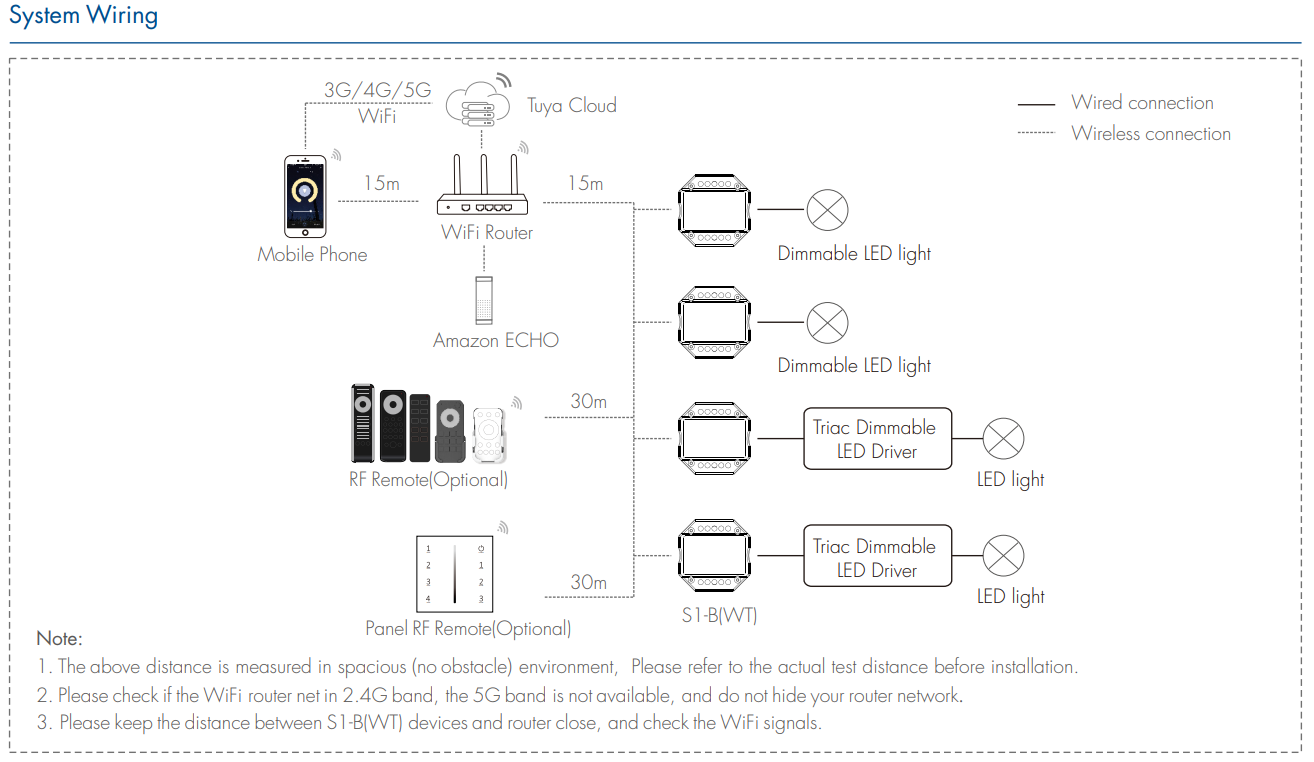

â—� Each S1-B(WT) controller can also work as WiFi-RF converter, then use Tuya smart APP to control one or more RF dimming LED controller or driver synchronously.

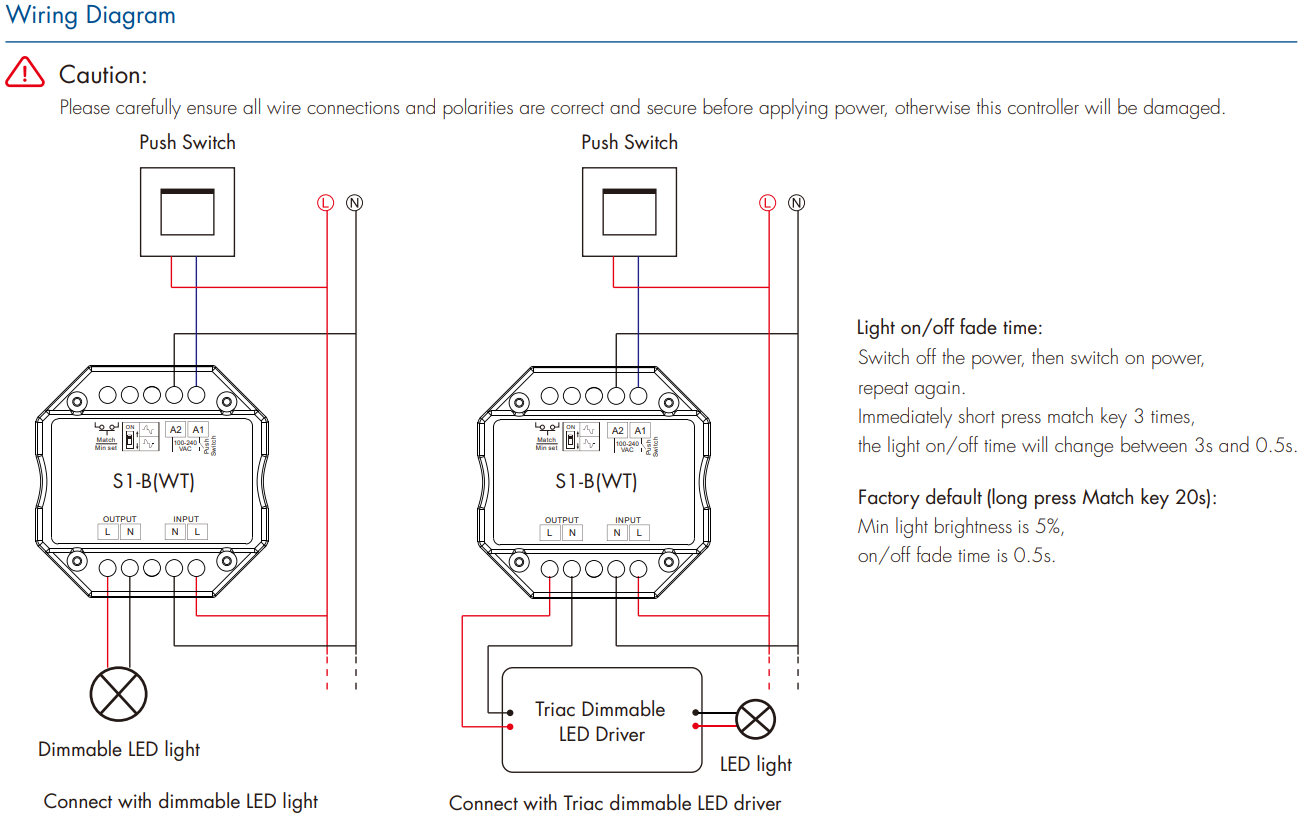

â—� Connect with external push switch to achieve on/off and 0-100% dimming function.
â—� Easy to be placed in standard wall junction box behind a push switch.
â—� Over-heat / Over-load protection, recover automatically.
