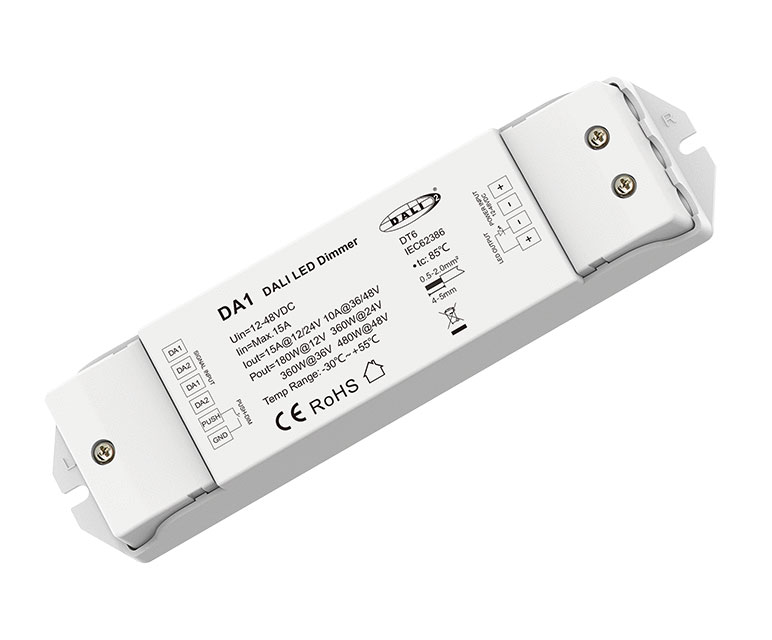

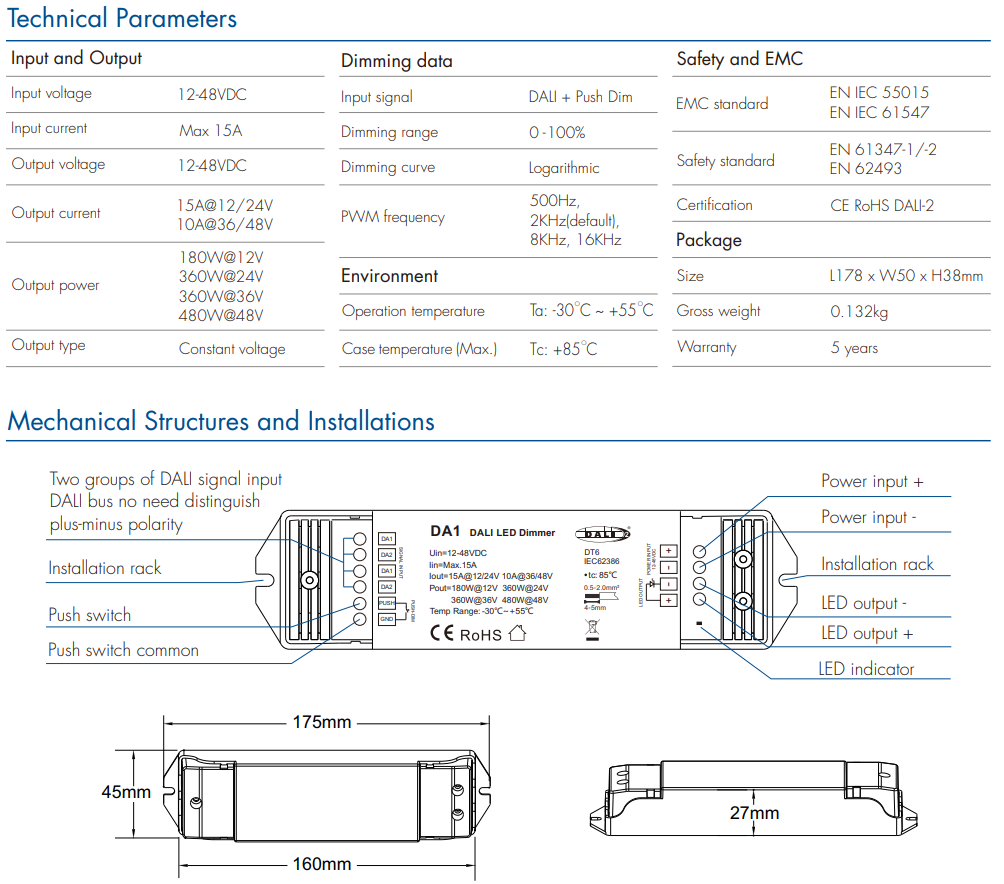

1 Channel 12-48VDC Constant Voltage DALI LED Dimmer - DA1(DT6)
â—� 1 channel constant voltage DALI LED Dimmer, output Max. 15A.
â—� DALI-2 certied, in accordance with DALI standard protocol IEC 62386-101, 102, 207 and in compliance with DALI products from other international incorporation.
â—� DALI address will be automatically assigned by DALI master, 1 DALI address.
â—� PWM frequency 500Hz, 2KHz, 8KHz or 16KHz selectable.
â—� Standard DALI logarithmic dimming curve.

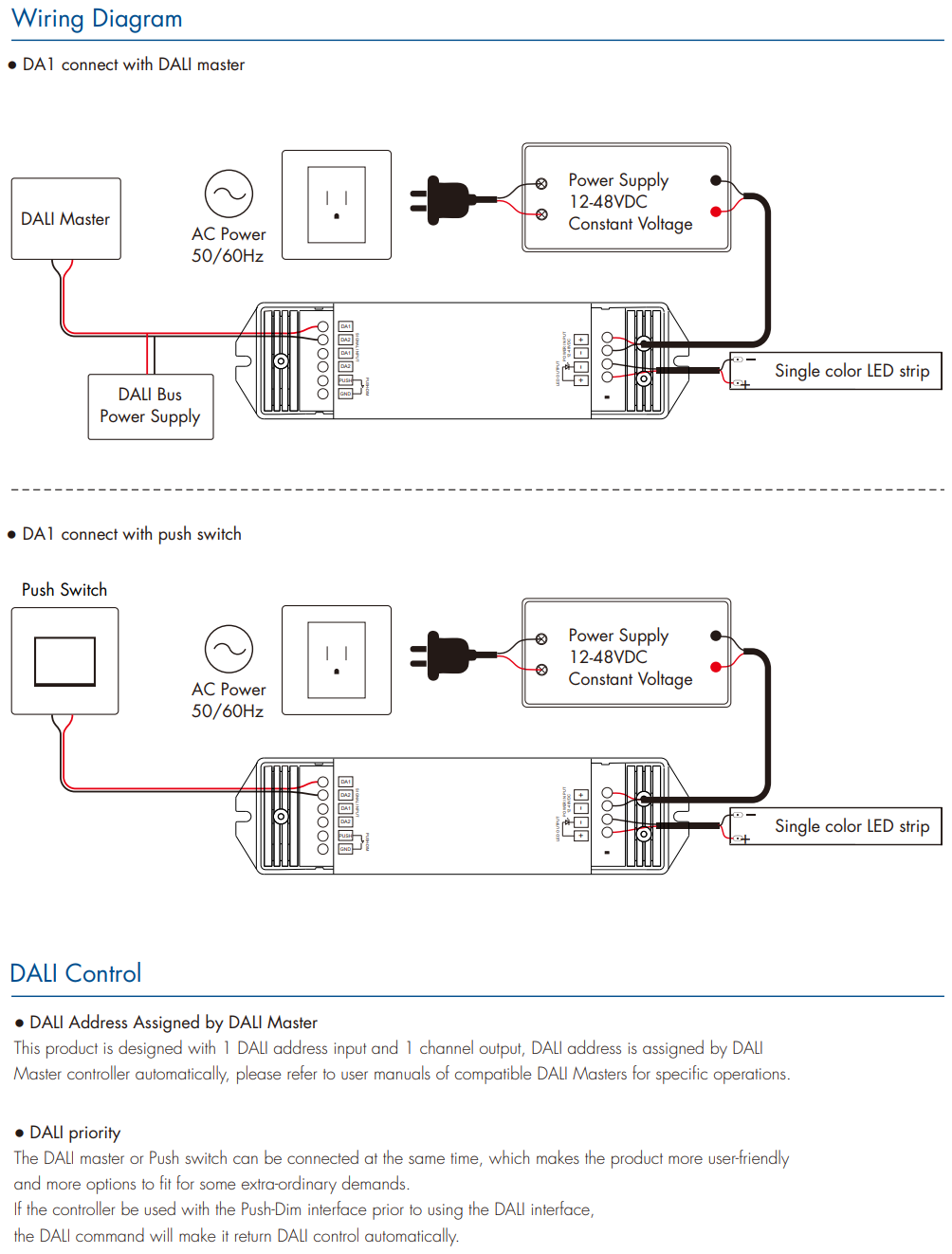

â—� Connect with external push switch to achieve on/off and dimming function.
â—� Over-heat / Over-load / Short circuit protection, recover automatically.
