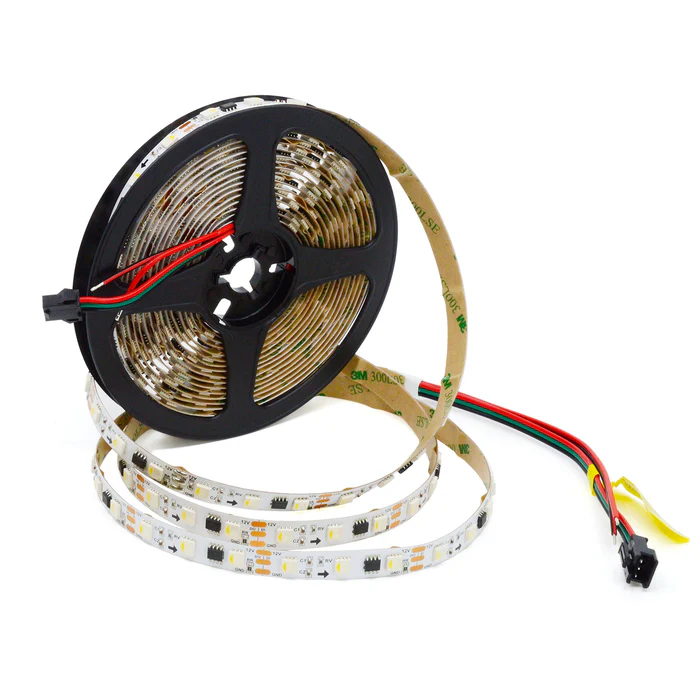

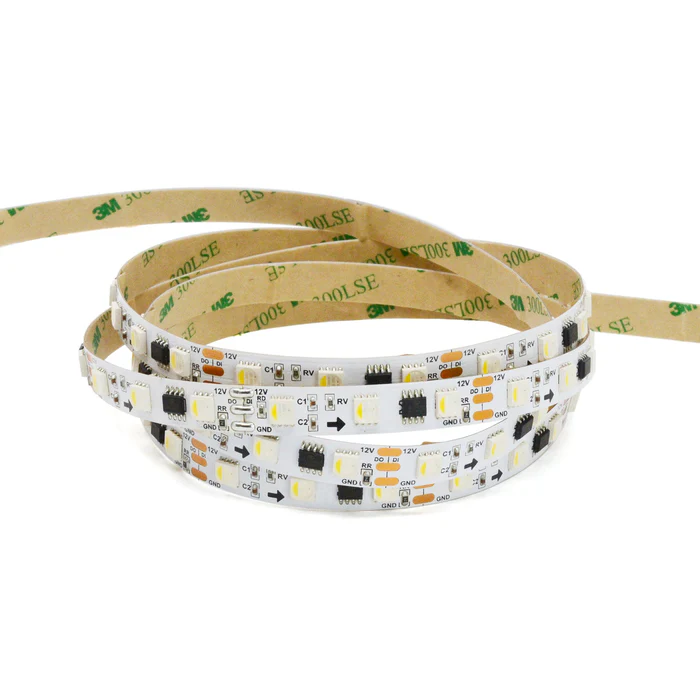

Upgrade your lighting design with the UCS2904 SPI 5050 RGBW LED Strip Light, delivering brilliant RGB effects alongside a dedicated white channel for versatile illumination. This 5-metre reel is built with 60 premium 5050 LEDs per metre and a pixel density of 20 pixels per metre, ensuring both high brightness and smooth, dynamic effects.

Driven by the advanced UCS2904 SPI IC, each pixel section can be individually addressed, enabling chasing patterns, fades, flashes, and fully custom animations. The inclusion of true white LEDs makes this strip ideal for applications where both vivid colour and clean white light are required—perfect for accent lighting, signage, displays, and creative installations.

When paired with SPI controllers and remotes, the strip offers instant preset modes or advanced programming options, giving you complete control over your lighting. Designed for 12V low-voltage operation and rated IP20, it’s a reliable choice for safe indoor use.

Features:
Digital Pixel Control – UCS2904 IC allows full addressability with 20 pixels per metre, supporting complex effects and animations.

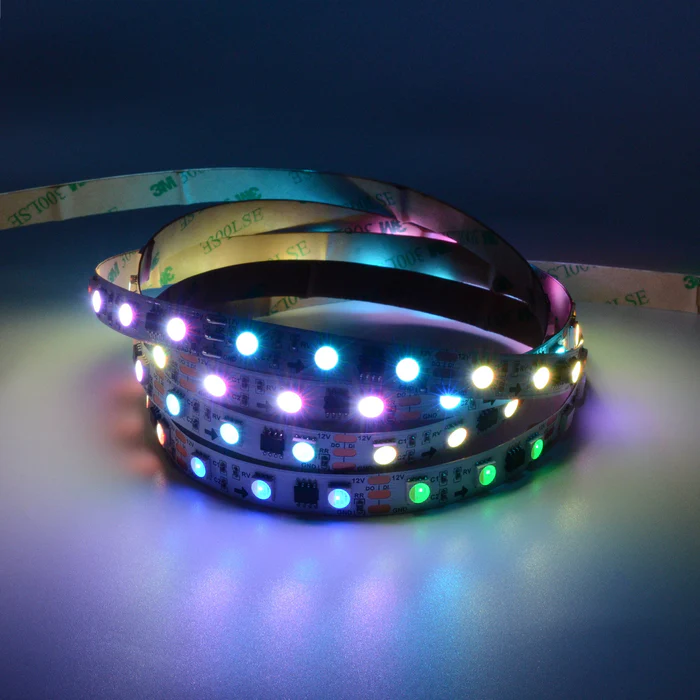

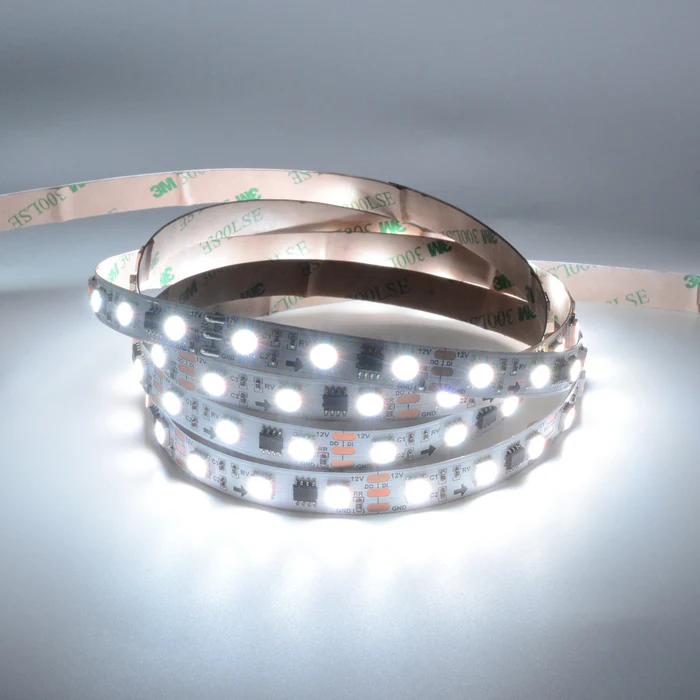

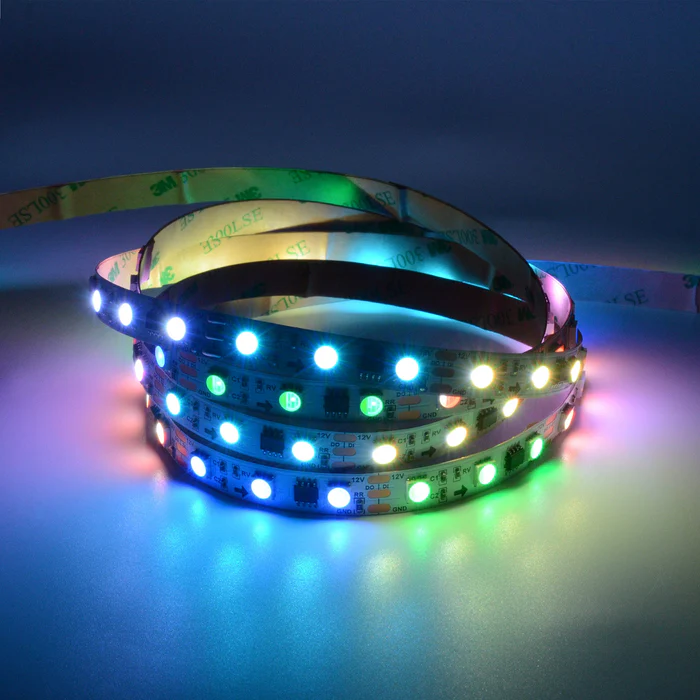

RGB + White Output – Combines rich RGB colour mixing with a dedicated white channel for flexible lighting options.
Customisable Effects – Compatible with SPI controllers and remotes for quick presets or detailed programming.
Cuttable & Flexible – Easily trimmed and reconnected for bespoke installations in signage, interiors, or retail environments.
3M Adhesive Backing – Strong self-adhesive tape allows easy, secure installation on smooth indoor surfaces.

Specification
Chips: SMD 5050
Input Voltage: 12V
IC Type: UCS2904
No. of Pixels: 20px/M
No. of Lights: 300 LEDs (60/M)
Wattage: 16.1W/M
IP Rating: IP20 (Non-Waterproof)
Strip Length: 5M
Strip Width: 10mm
Strip Height: 3mm
Cuttable Length: Every 5cm
Warranty: 2 Years

Attention:
This LED strip operates on DC 12V. A compatible 12V LED driver (NOT INCLUDED) is required for safe and proper operation.
It also requires a compatible 12V SPI controller (NOT INCLUDED) to operate and control individual colours and effects.
Please test the strip before installation or modifications. Once cut or altered, the strip cannot be returned.
