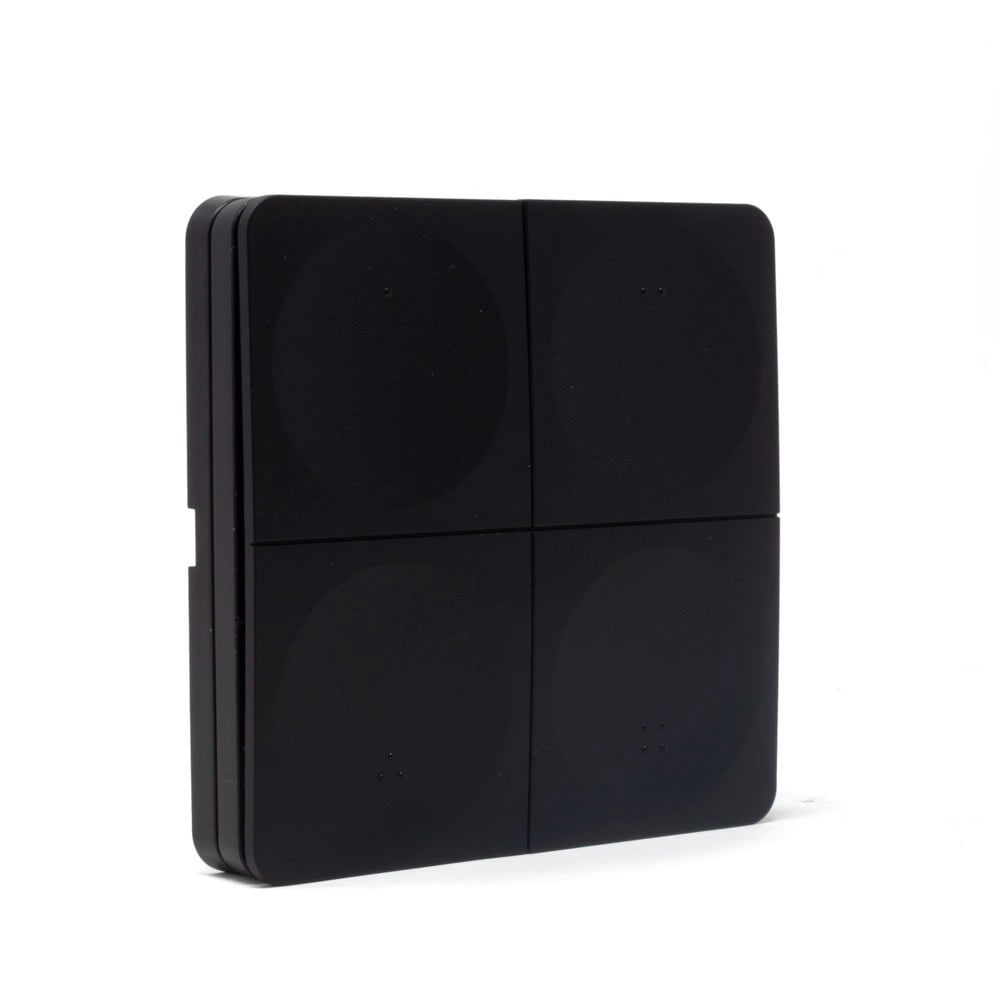

This K4 4 zone wireless dimming wall panel from our MiBoxer range of lighting control products enables simple wireless brightness control for compatible MiBoxer / Mi Light 2.4G series lamps. Designed for indoor lighting control, this compact panel provides 4 sets of independent control and can control an unlimited number of compatible lamps.

Each zone button provides straightforward on/off and dimming operation. Short press a zone button to switch the selected lighting on or off, or long press to adjust the brightness smoothly. The dimming range is from 0.1% to 100%, making it suitable for creating anything from low level ambient lighting to full brightness task lighting.

The wall panel uses 2.4GHz RF wireless transmission technology and offers a control distance of up to 30m. This makes it a practical option for simple wireless lighting control without the need for signal wiring between the wall panel and the compatible lighting products.

The controller is powered by 1 x CR2032 battery and requires no mains wiring. Installation is simple: insert the battery, apply the adhesive wall holder to the desired position, then place the panel onto the holder. The panel measures 86mm x 86mm with an 11mm depth, while the wall holder has a slim 5mm depth.

This wall panel has an IP20 rating and is intended for indoor use. It should not be used for long periods in humid or high temperature environments, or in areas with large amounts of metal or strong electromagnetic interference, as this may reduce the control distance.

For more details on this and our full range of lighting control products please contact our technical sales team by phone, email or via live chat and WhatsApp on our website.

Features:
Wireless 4 zone dimming wall panel
2.4GHz RF wireless transmission
Compatible with MiBoxer / Mi Light 2.4G series lamps
Control distance up to 30m
Supports 4 sets of independent control
Controls an unlimited number of compatible lamps
Smooth brightness adjustment from 0.1% to 100%
Short press for on/off control
Long press for brightness adjustment
No wiring required for simple installation
Powered by 1 x CR2032 battery
Adhesive wall holder for easy mounting
IP20 rated for indoor use
Five Year Warranty
