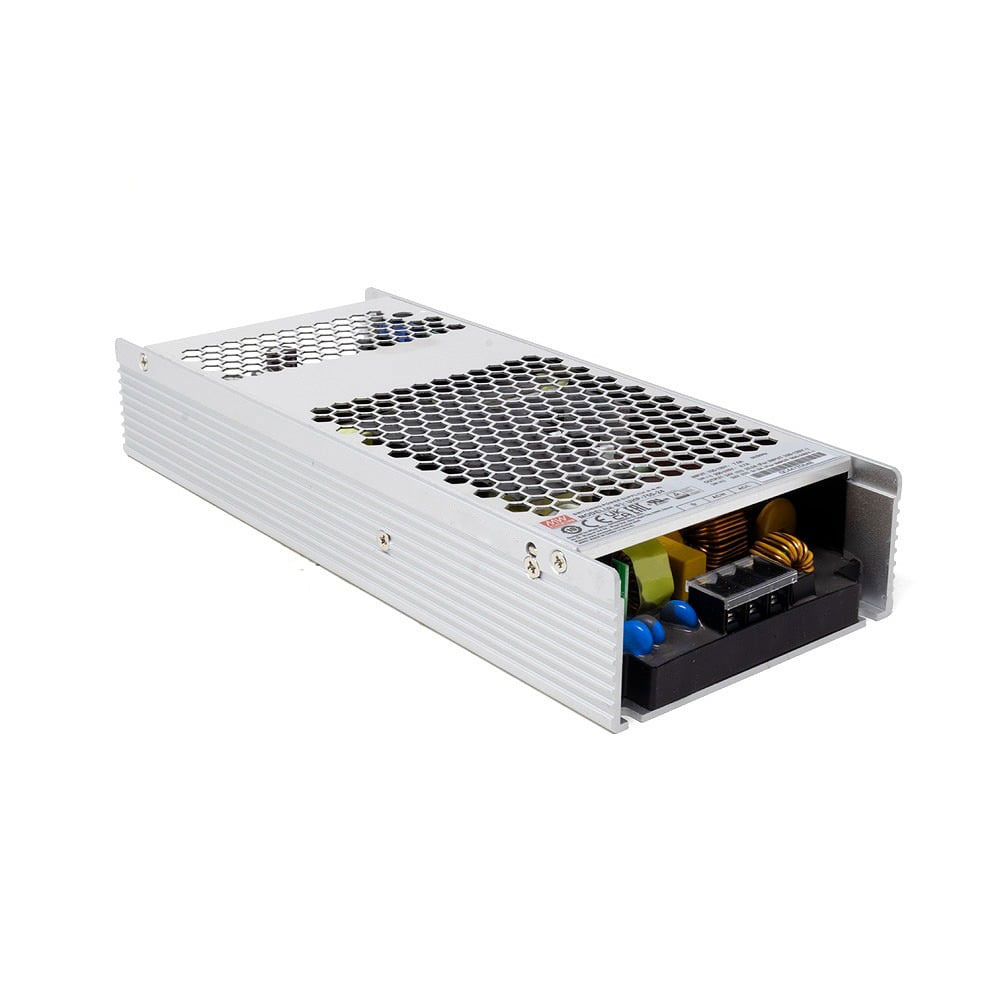

The MEAN WELL UHP-750-24 is a 750W single output slim type power supply with a low profile design of just 41mm. It supports a universal 90~264VAC input and delivers a stable 24V constant voltage output with a rated current of 31.3A and 751.2W rated power. With efficiency levels reaching up to 95%, the UHP-750-24 is designed for reliable performance in demanding applications.

This model features a fanless and conduction cooled design, built in active PFC function and the ability to withstand 300VAC surge input for 5 seconds. It also includes comprehensive protection against short circuit, overload, over voltage and over temperature, helping to support dependable long term operation.

The UHP-750-24 operates across a working temperature range of -30°C to +70°C and includes a DC OK relay contact, LED power indicator and 5G anti vibration capability. It is compliant with international safety standards including UL62368-1 and TUV BS EN/EN62368-1, making it a high performance power supply solution for industrial automation machinery, control systems, mechanical and electrical equipment, electronic instruments and household appliances.

Specifications
750W MEAN WELL Slim Type Power Supply
24V Constant Voltage Output
31.3A Rated Output Current
90~264VAC Universal Input Range
Up to 95% Efficiency Performance
Slim 41mm Low Profile Design
Fanless and Conduction Cooled Design
Built In Active PFC Function
Withstands 300VAC Surge Input for 5 Seconds
-30°C to +70°C Working Temperature
Short Circuit, Overload, Over Voltage and Over Temperature Protection
DC OK Relay Contact
LED Indicator for Power On
5 Year Warranty
