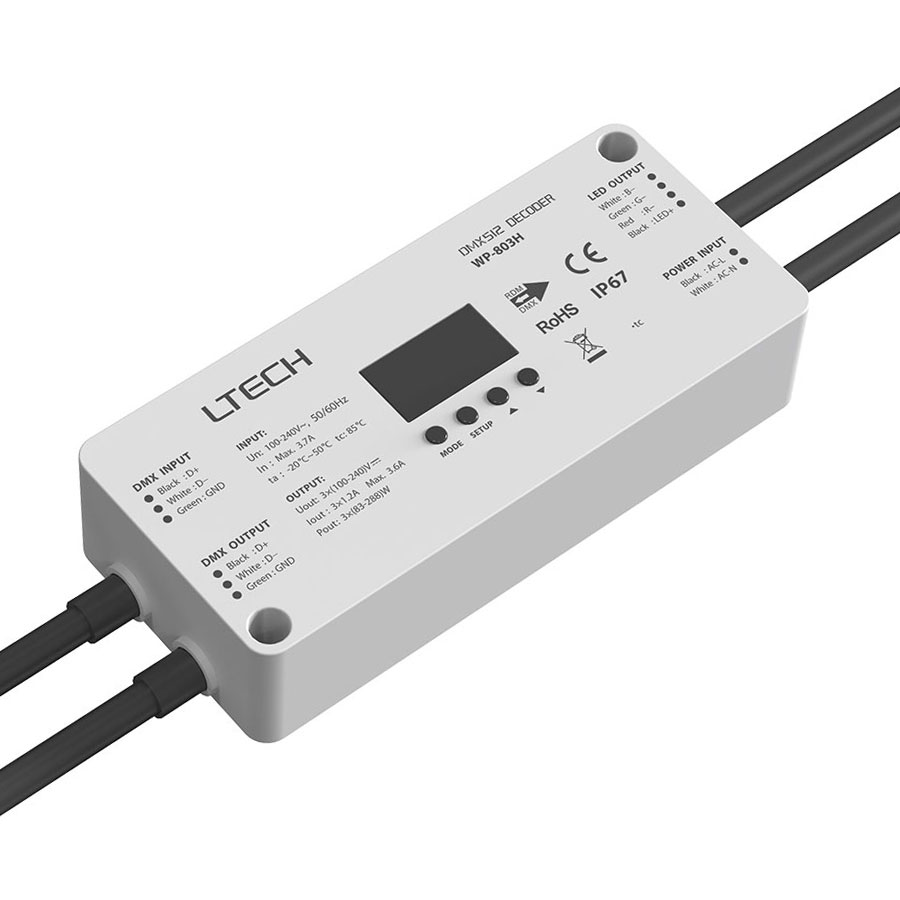

Waterproof DMX512 / RDM CV Decoder - 100~240V - WP-803H (For high voltage LED strips)
SKU:
WP-803H
WP-803H uses the RDM protocol and supports DMX512/RDM signal bi-directional communication. The RDM pro-tocol enables the remote management such as reading / writing DMX address (For RDM functions the DMXmaster must be RDM compliant). WP-803H has 3 channel output with max. 1.2A output for each channel. It canbe used to control DIM, CT, RGB constant voltage lights and achieve 0-100% dimming or various lighting effects. WP-803H can be operated in DMX mode or in customized mode.
It is easy to set address via digital display and buttons. WP-803H is a waterproof decoder with IP67 rating, sui-table for outdoor and damp environments.

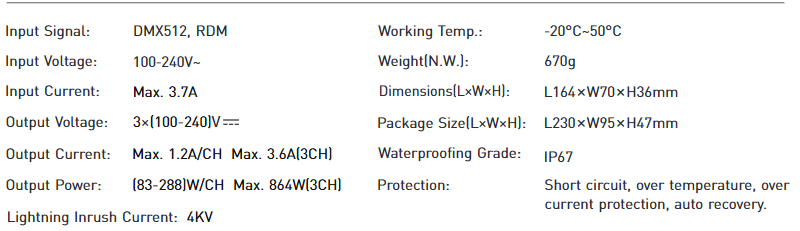

Specifications

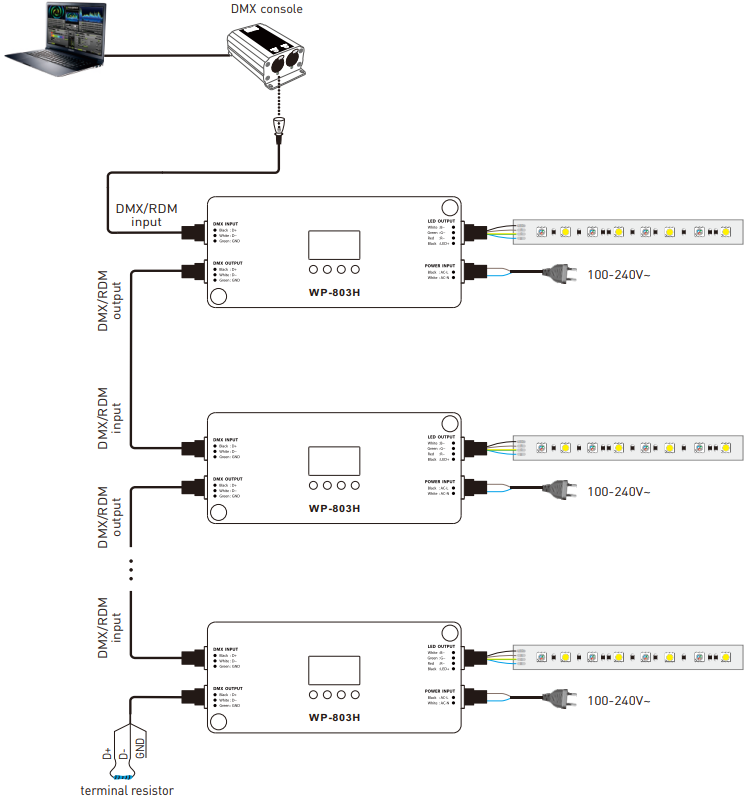

Parts Diagram
