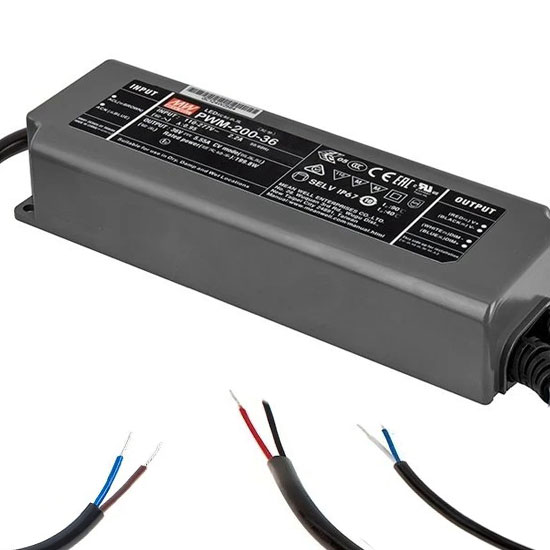

The 36V Mean Well PWM series switching power supply is a reliable and economical choice for powering your lighting. It has integrated short circuit, overload, over-voltage, and over-temperature protection. Additionally, it can withstand a 300 VAC surge input for 5 seconds and has a built-in cooling fan. A universal AC input range of 100-240 VAC and multiple wattage options make it a versatile and easy-to-use option for powering lighting systems.

Product Details:
Plastic housing
IP67 waterproof; Suitable for wet conditions
Surface mount with mounting tabs
Universal AC input range: 100-240 VAC
Class II power supply - no floating ground (all wattages)
Class 2 power supply (40W and 90W)
5-Year warranty

Specifications
Brand: Mean Well
Built-in PFC Function: Yes
Dimmable: Yes
Dimming Control: 0-10V, Potentiometer, PWM
Environmental Rating: Suitable for Wet Locations, Waterproof
Input Frequency Range: 47 - 63 Hz
Input Connection Type: Pigtail
Input Voltage: 120-277 VAC
IP Rating: IP67
Multi-Tap: No
Number of Outputs: 1
Output Connection Type: Pigtail
Output Voltage: 36 VDC
Output Current: 5500 mA
Output Power: 200 Watts
Warranty: 5 Year
