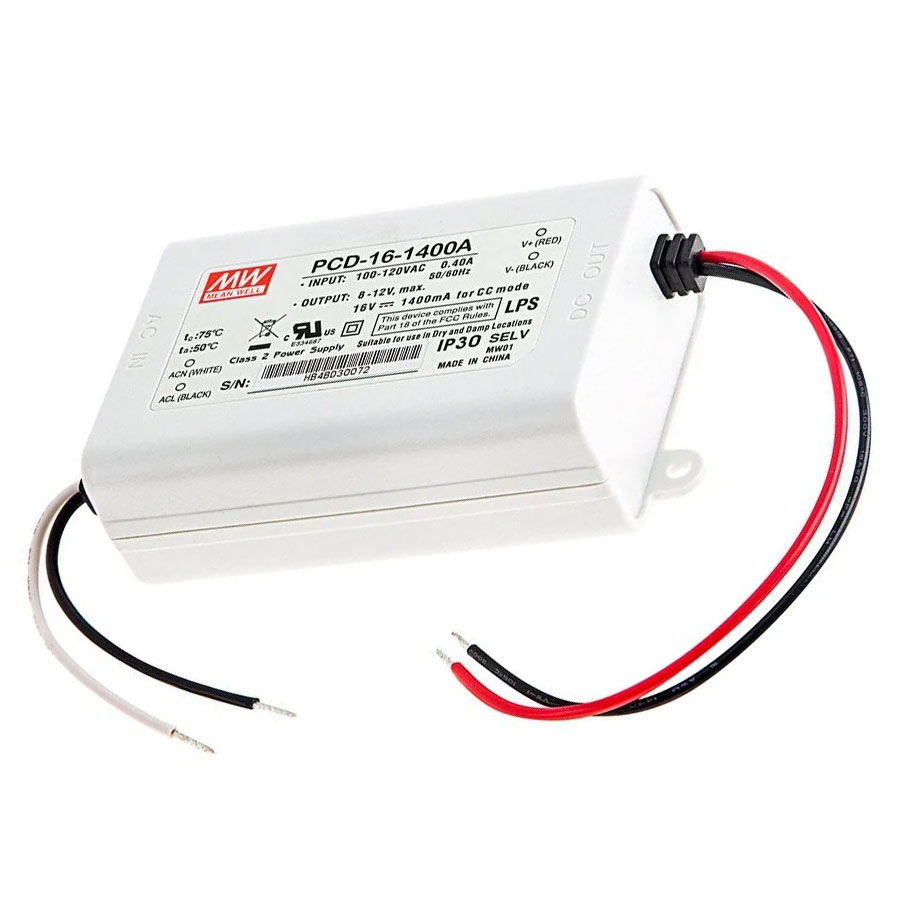

    MEAN WELL Constant Current LED Driver - PCD-16 Series - 16W - 1400mA - 8-12 VDC

      (1 Reviews) | Write a review
    SKU: PCD-16-1400A
    Discontinued
    Starting at: $24.99
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Tue,Jul,14 and Mon,Jul,20. order with 2days,9hrs and 31 min.

    Mean Well constant current driver for powering high power LEDs. Input range of 100-120 VAC - see specification table for output range. Class 2 and Class II rated. Measures 83mm(3.27 in) x 56.7mm(2.23 in) x 29.5mm(1.16 in), case features built-in mounting tabs with 3 inch input and 6 inch output power wires. Dimmable with TRIAC based dimmers.

    Specifications
    Brand: Mean Well
    Built-in PFC Function: Yes
    Certifications/Compliance: Class 2, Class II, FCC, UL Recognized
    Dimmable: Yes
    Dimming Control: TRIAC (ELV), TRIAC (MLV), TRIAC (MLV+ELV)
    Environmental Rating: Non-weatherproof, Suitable for Damp Locations
    Input Frequency Range: 47 - 63 Hz
    Input Connection Type: Pigtail
    Input Voltage: 100-120 VAC
    IP Rating: IP30
    Multi-Tap: No
    Number of Outputs: 1
    Output Connection Type: Pigtail
    Output Current: 1400 mA
    Output Power: 16 Watts
    Output Voltage: 8-12 VDC
    Warranty: 3 Year


    Show more reviews
    store image

    MEAN WELL Constant Current LED Driver - PCD-16 Series - 16W - 1400mA - 8-12 VDC

    Part Number: PCD-16-1400A
